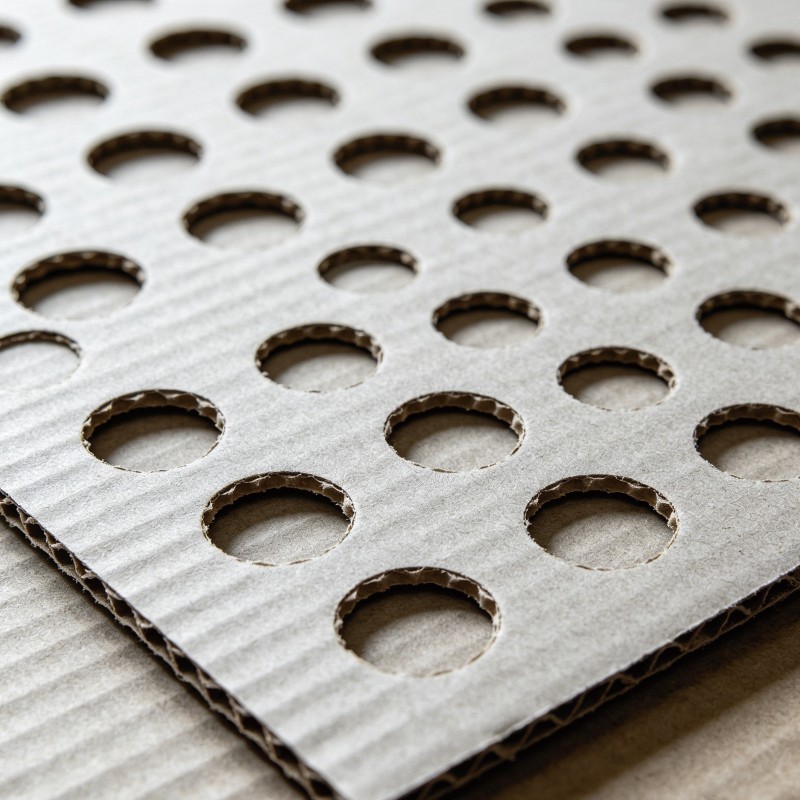

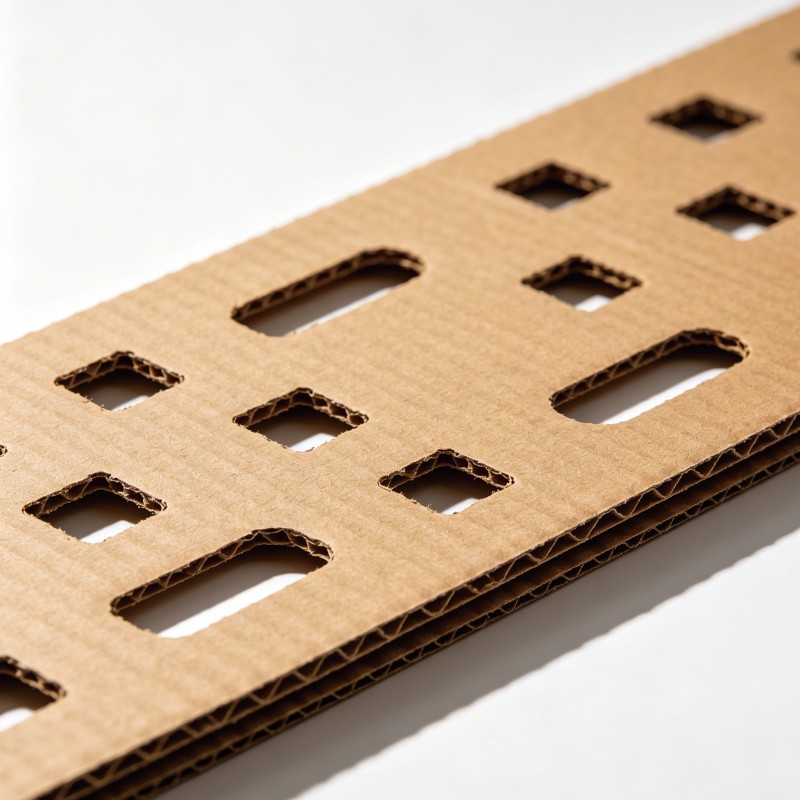

Perforated Corrugated Cardboard Liners

Perforated Corrugated Cardboard Liners are created by mechanically perforating standard corrugated sheets, resulting in a surface with evenly distributed ventilation holes. They require no assembly or splicing---simply lay them flat inside the box upon opening. As an upgraded, breathable version of standard corrugated liners, they combine load-bearing protection for layered goods with effective airflow, solving issues like moisture buildup and heat entrapment in sealed containers.

Key Applications

Layered separation of goods to prevent crushing, friction, or scratching between layers.

Air channels formed by perforations allow moisture and heat to escape, reducing condensation and mold growth.

Maintains airflow for long-distance transport of fresh produce, delaying spoilage.

Prevents heat accumulation when packing heat-generating products or components requiring heat dissipation.

Suitable for cold chain logistics and pallet layering to evenly distribute stacking pressure.

Can be combined with grid dividers or adjustable partitions for comprehensive packaging solutions.

An eco-friendly, paper-based alternative to plastic breathable pads; suitable for export.

Key Selling Points

Built-in ventilation channels prevent condensation in sealed boxes. Uniform perforations promote internal air circulation, quickly dissipating moisture and heat to reduce the risk of mold on produce or moisture damage to products.

One-piece flat design---ready to use. No interlocking or gluing required; simply lay flat in the box. Compatible with continuous assembly-line packing to boost operational efficiency.

Balances breathability with load-bearing strength. Mechanically optimized hole layout and perforation ratios ensure effective ventilation while maintaining the corrugated board's compressive strength and cushioning capabilities.

Eco-friendly, recyclable, and export-compliant. Made from virgin corrugated paper; 100% biodegradable and recyclable. Odor-free and dust-free, meeting environmental standards for food and cross-border packaging.

Lightweight, saving on logistics and storage costs. Low dead weight adds no extra chargeable weight to the package; sheets can be stacked in large quantities, minimizing warehouse space usage.

Fully customizable specifications. Dimensions (length/width), hole diameter, spacing, shape, and layout can all be adjusted to meet specific ventilation requirements. Flexible configuration and versatile application: units can be used individually as separate tiers or combined with fixed grid dividers and adjustable dividers.

Technical Specifications

1. Material and Corrugation Options

3-ply corrugated (B-flute / C-flute): Suitable for short-distance fresh produce transport and general lightweight goods

5-ply corrugated (BC-flute / EB-flute): Ideal for heavy-duty stacking and long-distance cold chain transport

Optional lamination or waterproof coating for enhanced moisture resistance

Raw material: Premium Grade-A kraft linerboard; strong bonding, resistant to delamination or fiber shedding

2. Standard Board Grammage

Liner grammage: 170g, 200g, 230g, 250g; heavy-duty applications can be upgraded to thicker, higher-grammage liners

3. Dimensions and Perforation Parameters

Overall dimensions: Custom-cut to match carton internal dimensions; square corners

Hole shapes: Round, elongated ventilation slots, or plum-blossom (star) patterns

Standard hole diameters: 3mm / 6mm / 8mm / 10mm; custom sizes ranging from micro-holes to large holes available

Hole layout: Matrix or staggered (plum-blossom) patterns; specific perforation ratios available

Dimensional tolerance ≤ ±1mm; clean, precise holes with no burrs or tearing

4. Manufacturing Process Parameters

CNC cutting combined with integrated mechanical punching; smooth hole edges and crack-free board

Pre-flattening treatment ensures boards remain flat without warping or bowing during shipment

Hole placement avoids primary load-bearing zones to maintain overall structural rigidity

5. Physical Properties

Provides transverse and longitudinal cushioning and compression resistance; distributes stacking loads

Perforation design adjustable to needs: increase perforation ratio for high ventilation requirements; decrease for maximum load-bearing capacity

Waterproof versions suitable for high-humidity storage and cold chain transport

6. Shipping Format

Stacked and bundled flat; no folding required; ready for immediate use upon arrival

Applications for Perforated Corrugated Cardboard Liners

1. Fresh Produce Industry

Suitable products: Apples, oranges, kiwifruit, pomegranates, various fresh fruits, and vegetable gift boxes Real-world Application: Fruit E-commerce. Perforated liners are placed between layers to separate fruit, allowing normal airflow and preventing rot caused by dripping condensation; this significantly reduces losses during long-distance shipping.

2. Beverages and Glass Bottle Packaging

Suitable Products: Bottled drinks, fermented products. Real-world Application: Fermented goods often accumulate moisture in boxes; breathable liners channel away humidity, preventing labels from peeling off due to prolonged exposure to moisture.

3. Electronics, Lighting, and Heat-generating Components

Suitable Products: LED drivers/power supplies, small heat-generating components, plastic housings. Real-world Application: Heat builds up easily in sealed cartons; breathable liners aid heat dissipation, reducing the risk of component oxidation caused by condensation.

4. Flowers, Seedlings, and Perishable Produce

Suitable Products: Potted plants, fresh-cut flowers, root vegetables. Real-world Application: Ensures airflow within the box to prevent damage from oxygen deprivation or overheating; ideal for express shipping of perishables.

5. Cross-border E-commerce / FBA / Cold Chain Logistics

Suitable Scenarios: Long-distance ocean container shipping, cold chain trucking, pallet layer separation. Real-world Application: Widely used in fresh food export supply chains; eco-friendly materials ensure smooth customs clearance while solving condensation issues in high-humidity ocean shipping environments.

Certifications and Quality Assurance

1. Authoritative Certifications

Passed SGS testing for biodegradable paper materials

Passed RoHS testing for hazardous substances

Complies with domestic packaging quality standards

Test reports and certificates of conformity available; supports customs clearance, bidding processes, and platform onboarding

Free from heavy metals and harmful additives; meets import packaging regulations for multiple countries

2. Four-Stage Factory Quality Control Process

Raw Material Inspection: Verification of basis weight and corrugated bonding strength

In-Process Inspection: Monitoring cutting precision and perforation quality; checking for board tearing

Finished Product Sampling: Checks for flatness, compression strength, and perforation appearance

Pre-shipment Batch Inspection: Visual check of the entire batch; finished product pass rate ≥ 99.8%

Why Choose Us?

1. Material Comparison

Competitors: Use large amounts of recycled mixed paper; boards are soft, prone to tearing at perforation points, and have poor load-bearing capacity.

Us: Use virgin Grade-A kraft linerboard; offers excellent rigidity and clean perforation edges; resists softening or delamination during prolonged stacking.

2. Manufacturing Process Comparison

Competitors: Basic punching methods; prone to edge tearing and board warping; arbitrary hole placement significantly compromises structural strength.

Us: Optimized mechanical layout for hole placement; CNC punching ensures smooth edges; balances airflow requirements with compressive strength.

3. Customization Comparison

Competitors: Limited to fixed hole diameters and layouts; do not accept small-batch orders.

Us: Fully customizable dimensions, hole diameters, hole shapes, and perforation density; accept orders of all sizes; provide free recommendations for the optimal perforation plan.

4. Integrated Solution Advantages

One-stop procurement available alongside solid (non-perforated) liners, fixed grid dividers, and adjustable carton dividers for a unified packaging solution.

5. Delivery Comparison

Maintained inventory of corrugated raw materials; standard specifications ship within 24 hours; custom perforation orders enter production within 48 hours; priority scheduling for urgent orders.

After-Sales & Usage Support

Usage Guidance: Recommendations on hole diameter, corrugated layering, and placement methods based on product type (e.g., fresh produce vs. electronics).

Quality Assurance: Free replacement or exchange in the event of dimensional discrepancies, perforation damage, or material defects upon receipt.

Long-term Support: Records of dimensions and perforation parameters maintained for returning clients; free re-optimization of liner solutions if carton specifications change.

Packaging & Shipping Standards

1. Product Packaging: Liners stacked neatly; outer packaging consists of 5-ply corrugated boxes with paper edge protectors on long sides to prevent crushing or bending during transit; outer packaging clearly labeled with specifications, hole diameter, and quantity for easy inventory intake.

2. Logistics: Courier delivery for small orders; dedicated freight lines for bulk orders; export-standard packaging for international orders.

3. Shipping Lead Times: Standard-sized stock items ship within 24 hours; custom perforated specifications typically ship within 48 hours (expedited production schedules can be arranged for urgent orders).

Customer Trust

1. Export Project Credentials

Bulk supply of perforated corrugated liners to fresh produce export companies; used in shipments of fresh fruit and agricultural products to Southeast Asia and Europe. Suitable for cross-border cold chain logistics; eco-friendly certifications meet overseas customs clearance requirements.

2. Client Base

Long-term service provider for fresh food e-commerce hubs, fruit gift box processors, cold chain supply chain operators, and lighting fixture factories. Many clients purchase complete sets combining breathable liners with grid-style dividers, resulting in consistent repeat orders.

3. Factory Capabilities

In-house corrugated cutting and fully automated perforation production lines; daily capacity of hundreds of thousands of liners; ample raw material inventory ensures stable delivery for both small and large orders.

4. Authentic Customer Feedback

① "Excellent breathability; fruit doesn't sweat or spoil due to trapped heat during long-distance transport. Using them with dividers has significantly reduced damage rates." --- Fresh food e-commerce client

② "Clean perforations, board rigidity meets standards, precise dimensions, and high efficiency on packing lines." --- Fruit and vegetable gift box manufacturer

③ "A great alternative to plastic breathable pads; clients appreciate the eco-friendly packaging, and customs clearance is hassle-free." --- Cross-border supplier

FAQ

Q1: Can the hole diameter and spacing for perforated corrugated cardboard liners be customized?

A: Yes, you can customize the shape (round, elongated/slot, or plum-blossom patterns). We provide optimal perforation plans based on load-bearing requirements to ensure structural integrity isn't compromised by excessive perforation.

Q2: How do I choose between perforated liners and standard non-perforated liners?

A: For fresh produce, items prone to moisture release or heat buildup, or goods requiring airflow during sealed transport → Choose perforated corrugated liners. For general hardware, dried goods, or simple layer separation/protection → Choose standard non-perforated liners.

Q3: Does the load-bearing capacity drop significantly after the board is perforated? A: Strategic placement of perforations does not significantly compromise structural integrity; for scenarios involving extreme stacking loads, we recommend a thicker, five-layer corrugated option.

Q4: Do the liners shed paper dust? Can they come into direct contact with fruits and vegetables?

A: Made from premium Grade-A virgin paper, they shed minimal dust; for high-end fresh fruit gift boxes, we offer high-quality surface liners or upgraded film-laminated versions.

Q5: Do the perforated liners require assembly or splicing?

A: No; they are used as single, flat sheets---no glue or tape required.

Sample Support, Warranty, and Return/Exchange Policy

1. Sample and Testing Support

Free sample delivery available for testing thickness, rigidity, breathability, and dimensional fit.

Environmental compliance reports and product certificates of conformity provided to meet inspection, customs clearance, and tender requirements.

2. Warranty Service

12-month warranty under normal storage (dry environment) and proper use conditions.

Free replacement for manufacturing defects such as delamination or tearing at perforation points during the warranty period. Damage caused by water immersion or excessive crushing/impact is not covered.

3. Return and Exchange Policy

Returns or exchanges can be negotiated if you are not satisfied with the samples.

Free remake or full refund for mass-production orders with dimensional errors or manufacturing defects.

Assistance with re-cutting and re-punching available if fit issues arise from customer-provided dimensions or perforation specifications (only basic processing fees charged).

7-day "no-questions-asked" return/exchange policy for in-stock liners (provided they are unopened and in resalable condition).

Summary of Real-World Usage

Perforated Corrugated Cardboard Liners are specialized protective dividers designed for fresh produce, cold chain logistics, and sealed transport environments; they represent a functional upgrade over standard flat-edge corrugated liners.

Compared to plastic ventilated pads: Paper-based, eco-friendly, and recyclable; lower cost; no "white pollution" (plastic waste); advantageous for export customs clearance.

Compared to non-perforated flat liners: Solves issues with condensation and heat buildup in sealed containers; significantly reduces spoilage and waste of fresh produce.

Compared to foam liners: Superior breathability; no dust/particle contamination; lighter weight. Suitable for enterprises requiring tiered separation while ensuring internal airflow, it is often paired with grid-style dividers to create a comprehensive packaging system that combines individual item compartmentalization with ventilated layering.
