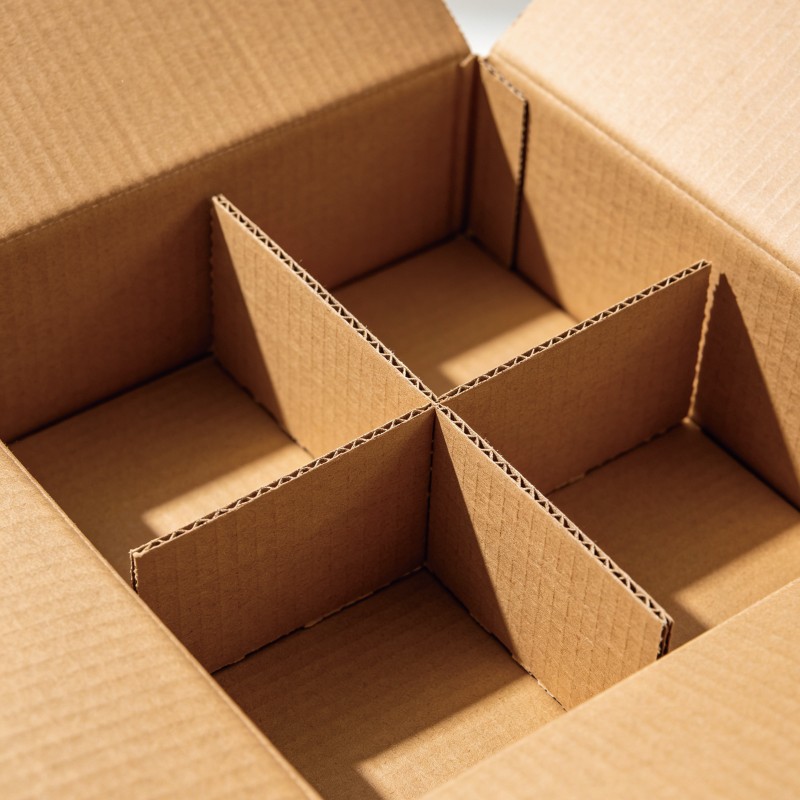

Cross-Slot Cardboard Dividers

These dividers fully separate items such as bottles, cans, fruit, hardware, and small products, preventing friction, collisions, or crushing during transit. The corrugated material offers inherent cushioning and shock absorption, serving as an eco-friendly alternative to foam fillers. Supplied flat for storage efficiency, Cross-Slot Cardboard Dividers provide versatile protection suitable for various logistics scenarios, including express shipping, full-truckload transport, containerized ocean freight, and long-term warehouse handling.

Key Selling Points

1. Precision-aligned interlocking slots ensure a secure, stable fit; the assembly remains intact without shifting or separating during stacking or transit.

2. Independent grid compartments completely separate individual items, preventing damage from collisions, scratches, crushing, or compression.

3. Corrugated material offers inherent cushioning; it is more cost-effective than foam fillers, recyclable, and environmentally friendly.

4. Can be fully disassembled and laid flat; minimizes storage space for bulk inventory and maximizes loading capacity for shipments.

5. Material options available for various needs: thin E-flute for lightweight goods and thickened 5-layer board for heavy items.

6. Fully customizable dimensions and grid counts; custom molds available for any grid layout (e.g., 2×2, 3×4, 4×6, 5×8).

7. Reinforces box sidewalls and enhances overall compressive strength, preventing collapse or deformation during multi-layer stacking.

8. Made from odorless virgin kraft paper; safe for packaging food, fruit, and glassware.

Technical Specifications

I. Customization Parameters

1. Single-cell inner dimensions: 30mm--150mm; suitable for apples, oranges, glass bottles, hardware, and canned goods.

2. Overall external dimensions: Matched to the internal dimensions of the corresponding carton; tolerance ±1mm.

3. Standard grid layouts: 2×2, 2×3, 3×3, 3×4, 4×5, 4×6, 5×8; custom molds available for non-standard layouts.

4. Divider height: 20mm--300mm (cut to specification).

II. Corrugated Material Grades

1. 3-layer E-flute (Lightweight): Approx. 2mm thick; suitable for fruit and light glass bottles; load capacity ≤5kg.

2. 3-layer B-flute (General Purpose): Approx. 2.5mm thick; suitable for daily necessities and small hardware; load capacity ≤10kg.

3. 3-layer A-flute (High Cushioning): Approx. 3.5mm thick; suitable for fragile ceramics and premium fresh fruit.

4. 5-layer EB/AB Extra-Rigid Flute (Heavy-duty): Thickness 4.5--6mm thickness; suitable for metal components and heavy canned goods; load capacity ≤25kg.

III. Optional Process Upgrades

Surface: Natural kraft paper, white-top liner, or single-sided waterproof lamination.

Functionality: Anti-static corrugated board (for electronic components) or food-grade, fluorescent-agent-free base paper.

Printing: Single-color printing of product names and warning symbols on the divider surface.

Application Areas

Fresh produce (oranges, apples, pomegranates, kiwifruit), glass wine bottles, ceramic cups/jars, cosmetic containers, small stamped hardware parts, automotive components, canned foods, 3C digital accessories, holiday gift sets, and slotted divider sheets for small-item export packaging.

Quality Control Process

Incoming corrugated base paper is inspected for rigidity and moisture content → CNC precision slotting (slot depth standardized to half the board height) → cutting to size; each batch undergoes sampling tests for interlocking stability and cushioning/compression resistance; products with uneven slot depths, structural weakness (soft/collapsed board), or dimensional deviations are isolated and reworked; full paper-quality inspection records are available for food-grade and export orders.

Competitive Advantages

1. CNC-integrated slotting ensures uniform slot depth; unlike manual cutting---which often leads to loose connections or collapsing cells---our dividers offer a secure, stable fit.

2. Comprehensive production capabilities: Simultaneous manufacturing of materials ranging from thin E-flute to heavy-duty 5-ply corrugated board, providing one-stop solutions for both lightweight and heavy goods.

3. Precision-engineered cross-slot dividers fit existing customer cartons perfectly; no need to modify outer packaging---simply drop them in and use.

4. Shipped flat to significantly reduce customer warehousing and logistics costs, as well as storage rental expenses.

5. Free layout design: Cell dimensions are optimized based on product diameter to maximize space efficiency and eliminate packaging waste.

6. Factory-tested for long-haul transport resilience; the interlocking structure remains stable and resists coming apart during transit.

After-Sales & Usage Guidance

1. Illustrated guides: Quick assembly steps for cross-slot dividers, product centering techniques, and tips for reinforcing the carton bottom with tape.

2. Short video content: Divider assembly demonstrations, protective packing tutorials for fresh fruit/glass bottles, and storage guidelines for moisture-resistant models.

3. One-on-one technical support: Material recommendations tailored to specific needs, such as fresh produce sea freight, heavy hardware, or anti-static electronics packaging.

Packaging & Shipping

1. Finished product packaging: Dividers of the same specification are bundled flat, wrapped in waterproof stretch film, and fitted with edge protectors to prevent bending.

2. Bulk orders: Palletized on solid wood pallets for forklift handling, preventing compression deformation or slot breakage.

3. Logistics: Local full-truckload delivery, inter-provincial LTL (Less-Than-Truckload) shipping, and full container loads (FCL) for export.

4. Lead times: Standard stock configurations ship within 48 hours; custom sizes, special flute types, and laminated/printed orders take 3--5 business days.

Customer Trust & Brand Credibility

1. Partnership track record: Long-term supplier for fresh produce orchards, beverage manufacturers, hardware processing plants, beauty product companies, and cross-border exporters; nationwide and international shipping of dividers paired with cartons and gift boxes.

2. Partner showcase: Brand logos from the fresh produce, beverage, hardware, and beauty industries. Partnership Showcase

3. Real-life footage: Finished divider inventory area, CNC slotting workshop, and packing team in action.

4. Authentic customer feedback: ① Cross-slot dividers used for packing oranges ensure no crushing or bruising during full-truck transport, cutting post-sale losses from damaged fruit by half. ② Glass bottle packaging eliminates the need for foam; corrugated dividers are more cost-effective, and used cardboard dividers can be collected and recycled. ③ Flat-packed shipping saves warehouse shelf space; assembly is simple, and packing staff can master the process quickly.

Sample & Testing Support

1. Sample support: Free samples of Cross-Slot Cardboard Dividers provided (customer covers shipping costs); full sets of cardboard test reports available for large-volume export or food-grade orders.

2. Usage warranty: With proper handling in dry, ventilated environments, dividers can be assembled and disassembled for reuse 3--5 times; water-resistant laminated versions remain stable in high-humidity storage for up to 4 months.

3. Return/Exchange policy: If manufacturing defects occur---such as slot misalignment, dimensional errors, or cardboard delamination/collapse---customers providing photographic proof within 48 hours are eligible for free replacements or negotiated returns/exchanges. Damage caused by customer cutting, overloading/crushing, or prolonged water exposure is not covered.

Customization Options

1. Dimensions & Grid Layout: Fully adjustable overall length, width, and height; internal cell dimensions; and number of horizontal/vertical cells.

2. Material Upgrades: 3-ply (E/B/A flute), 5-ply (EB/AB extra-rigid flute), and anti-static or food-grade base paper.

3. Surface Finish: Natural kraft, white-faced, single-sided water-resistant lamination, and single-color logo printing.

Complete Production Process

Customer provides carton internal dimensions/product outer dimensions → Designer plans grid layout for confirmation → Corrugated base paper stocked and inspected → Constant-temperature lamination and drying → CNC precision slotting, die-cutting, and sizing → Sampling, assembly checks, and compression testing → Flat-packed, bundled, and stretch-wrapped for storage.

Real-World User Experience

Orchard vendors frequently use 3×4 grid E-flute dividers Citrus packed with cross-slot dividers withstands multi-layer stacking during inter-provincial express transit; fruit skins remain free of pressure marks or bruising, leading to improved customer satisfaction.

Beverage plants use five-layer thickened cross-slot dividers to separate glass bottles; the grid structure remains stable despite the turbulence of ocean container shipping, preventing friction scratches on the bottles.

Hardware workshops use B-flute dividers to separate small stamped parts, replacing EPE foam; this reduces packaging material costs, and used dividers can be collected for recycling.

Unused dividers can be stacked flat, saving space in small warehouses; compared to molded inserts, they offer greater flexibility in inventory management.

FAQ

1. What is the maximum product diameter that fits in a single cell of the cross-slot divider?

A: Customization is available for cell inner diameters ranging from 30mm to 150mm; ample stock is available for standard sizes, such as 80--100mm for fresh fruit and 60--90mm for glass bottles.

2. What is the maximum load capacity of the cross-slot divider?

A: A single cell made of 3-layer E-flute board supports up to 5kg; a cell made of 5-layer extra-rigid board supports up to 25kg. The 5-layer thickened version is recommended for heavy metal components.

3. Is assembly difficult for cross-slot cardboard dividers shipped flat?

A: Assembly simply requires interlocking the horizontal and vertical slotted pieces; one person can assemble a unit in 10 seconds, ensuring high efficiency on packaging lines.

4. Are anti-static cross-slot dividers needed for packaging electronic accessories?

A: Anti-static corrugated dividers can be customized for electronic components like chips and circuit boards to prevent electrostatic damage.

5. Which offers better cost-performance: cross-slot dividers or molded inserts?

A: Flat-packed cross-slot dividers are preferred for long-term bulk stocking due to lower storage and logistics costs; molded die-cut inserts are a suitable choice for small-batch packaging of high-end gift boxes.

6. Are cross-slot dividers sufficient protection for fragile glass items?

A: Dividers are adequate for standard short-distance logistics; for long-distance ocean transport, wrapping products in bubble wrap alongside the dividers provides dual protection and reduces breakage.

7. Can the divider height be lower than the carton height?

A: The height of the dividers can be trimmed as needed; the recommended height is two-thirds of the goods, which ensures effective separation without wasting material.
