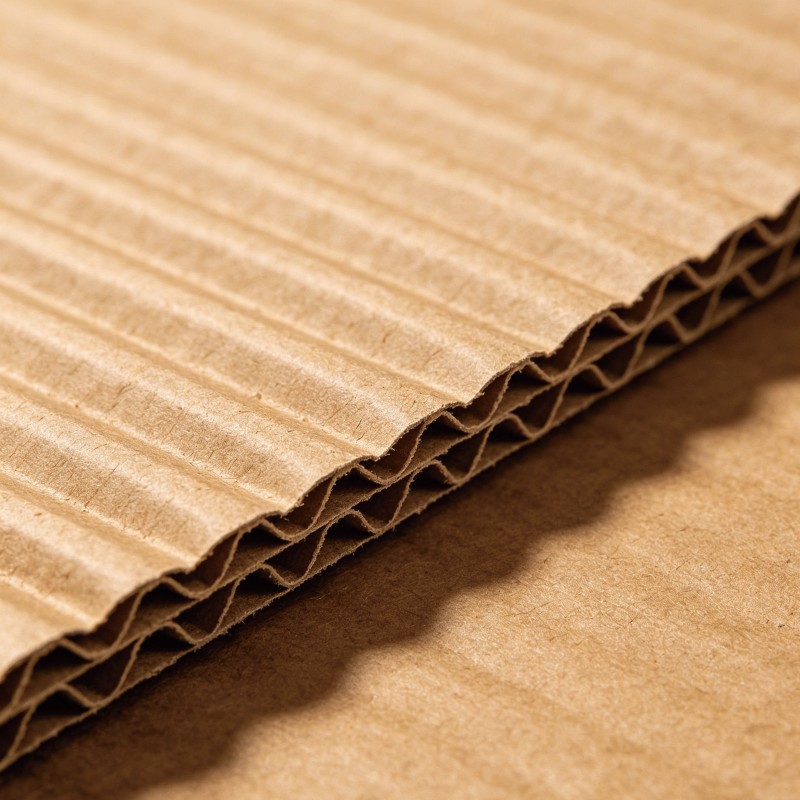

Extra-Strength C-Flute Corrugated Board

The Extra-Strength C-Flute Corrugated Board represents an upgraded, heavy-duty substrate for industrial packaging. Distinct from standard C-flute and high-cushioning C-flute variants, the development of this product focused primarily on achieving superior load-bearing capacity. It is specifically designed to meet the demands of multi-layer stacking for heavy cargo and the rigorous requirements of long-distance storage and transportation for overseas exports.

Selection of Heavy-Duty Base Paper

As a specialized manufacturer of heavy-duty corrugated cardboard, ZHONGYI utilizes a heavy-duty base paper formula for its Extra-Strength C-Flute Corrugated Board. Moving beyond the material logic of general-purpose cardboard, this approach specifically addresses three key pain points often encountered in heavy-duty packaging procurement: structural fatigue under pressure, deformation due to moisture absorption, and environmental compliance restrictions for exports.

1. Thickened Materials with a High Proportion of Virgin Wood Pulp

We select high-basis-weight virgin wood pulp linerboard paired with specialized core paper featuring high ring crush strength. The virgin wood pulp content is no less than 85%, and the basis weight of the paper is increased by over 30% compared to standard C-flute boards. The resulting material features a thick, dense texture with ample fiber toughness, free from impurities or odors, thereby elevating the overall load-bearing ceiling right from the raw material stage.

2. Standardized Moisture Control for Enhanced Environmental Stability

All base paper undergoes high-temperature setting and deep-drying treatments to ensure the finished product's moisture content remains stably controlled between 8% and 12%. This prevents the material from absorbing moisture, softening, or deforming during long-term stacking in warehouses or exposure to the humid conditions of sea freight, thereby guaranteeing the structural integrity of the packaging throughout the entire supply chain.

3. Full Compliance for International Trade Exports

The entire paper material system complies with both domestic regulations and EU environmental access standards. It contains no volatile or harmful additives, eliminating the need for additional material environmental assessments; thus, it can be directly utilized for the cross-border export packaging of a wide variety of goods.

What Upgrades Have Been Made to the Manufacturing Process?

1. Adoption of a Proven C-Flute Structure

Built upon the standard C-flute profile, the corrugated medium features a full, uniform structure---free from defects such as skewed, collapsed, or broken flutes. With a consistent flute count of 34 ± 2 per meter, the flutes fit together compactly, retaining their inherent superior cushioning properties to effectively absorb the shock and vibration encountered during the transit of heavy cargo.

2. Significantly Enhanced Compressive Strength

Leveraging a combination of high-ring-crush core paper and thickened linerboard, the finished product boasts a compressive strength approximately 40% higher than that of standard C-flute boards. Real-world testing demonstrates the ability to stably stack 5 to 6 layers of cartons without collapse or deformation, perfectly resolving the challenges associated with damage during the heavy-load storage and stacking of goods.

3. Precise Thickness Control Optimized for Mass Production

The Extra-Strength C-Flute Corrugated Board features a thickness range of 3.8--4.3 mm, with the market-standard specification set at 4.0 mm ± 0.2 mm. Characterized by minimal thickness deviation and a flat surface finish, it facilitates automated die-cutting and carton forming for large-scale boxes, making it ideally suited for the mass production of heavy-duty packaging solutions.

Quality Control via Simulated Heavy-Load Scenarios

As a reliable supplier of Extra-Strength C-Flute Corrugated Board, we have established a dedicated set of acceptance standards for heavy-duty cardboard, utilizing real-world scenario simulations to ensure consistent performance across all batch products.

1. Real-World Simulation-Based Outgoing Sampling

Prior to the release of each finished batch, we conduct rigorous sampling inspections covering key metrics such as Ring Crush Index (RCT), compressive strength, bonding strength, thickness, and moisture content. Specialized equipment is utilized to simulate multi-layer stacking and the vibrations associated with long-distance transit; only batches that meet all established standards are cleared for warehousing.

2. Protective Packaging for Streamlined Warehousing and Acceptance

Finished products are packaged using protective film that resists moisture and physical impact. Boards of the same specifications are stacked in designated zones, with each package clearly labeled to indicate basis weight, ring crush parameters, production date, and quality inspection batch number, thereby facilitating efficient receiving, inventory counting, and warehousing procedures.

3. On-Demand Customization for Non-Standard Specifications

We offer flexible customization options for cardboard thickness, dimensions (length and width), and paper basis weight, tailored to the actual weight and external packaging dimensions of the goods being shipped. Production schedules are arranged on an "as-needed" basis to ensure the timely delivery of all custom orders.

Applicable Scenarios

1. Large Appliance Packaging: Shipping and storage containers for fully assembled units such as refrigerators, front-loading washing machines, etc.; provides cushioning against bumps during loading and unloading, ensuring the integrity of internal components and the outer casing.

2. Mechanical Parts Packaging: Crating solutions for various heavy-duty equipment components and mechanical spare parts; offers protection against compression and external impact during transit.

3. Chemical Drum Outer Protection: Protective outer casings for various industrial paint drums and raw chemical containers; features high compressive strength and crack resistance to prevent leaks and damage during storage and transport.

4. Cross-border Export of Fresh Produce: Bulk packaging solutions for fresh fruits and vegetables shipped in export containers; balances load-bearing capacity for stacking with cushioning and freshness preservation to minimize cargo damage during long-distance transit.

FAQ

Q1: How do I choose between Extra-Strength C-Flute, High-Cushion C-Flute, and Standard C-Flute corrugated boards?

A: Standard C-Flute is used for general-purpose outer packaging of regular, small-to-medium-sized items. High-Cushion C-Flute focuses on shock absorption and is suitable for fragile items such as glassware and precision instruments. Extra-Strength C-Flute specializes in high load-bearing capacity and is ideal for heavy machinery, large appliances, chemical drums, and other goods requiring high-stacking capabilities or destined for overseas export.

Q2: Can the Extra-Strength C-Flute Corrugated Board meet EU environmental compliance requirements for exports?

A: The raw materials comply with EU environmental control standards and contain no harmful volatile substances. We possess a complete set of certifications, ensuring smooth clearance through cross-border customs and third-party random inspections without the need for additional testing.

Q3: Can the paper grammage (basis weight) be customized based on the weight of the cargo?

A: Yes, we support on-demand customization. We adjust the grammage of the liner and core papers, as well as the board thickness, based on the weight of the individual cargo unit and the required stacking layers. We provide samples for approval before proceeding with mass production.

Q4: Will the performance of the corrugated board deteriorate rapidly in humid, long-distance ocean shipping environments?

A: Our raw materials undergo a setting and drying process to control moisture content within a range of 8%--12%. This ensures excellent moisture resistance, allowing the board to withstand the high-temperature and high-humidity conditions typical of ocean shipping without rapidly softening or losing its compressive strength.
