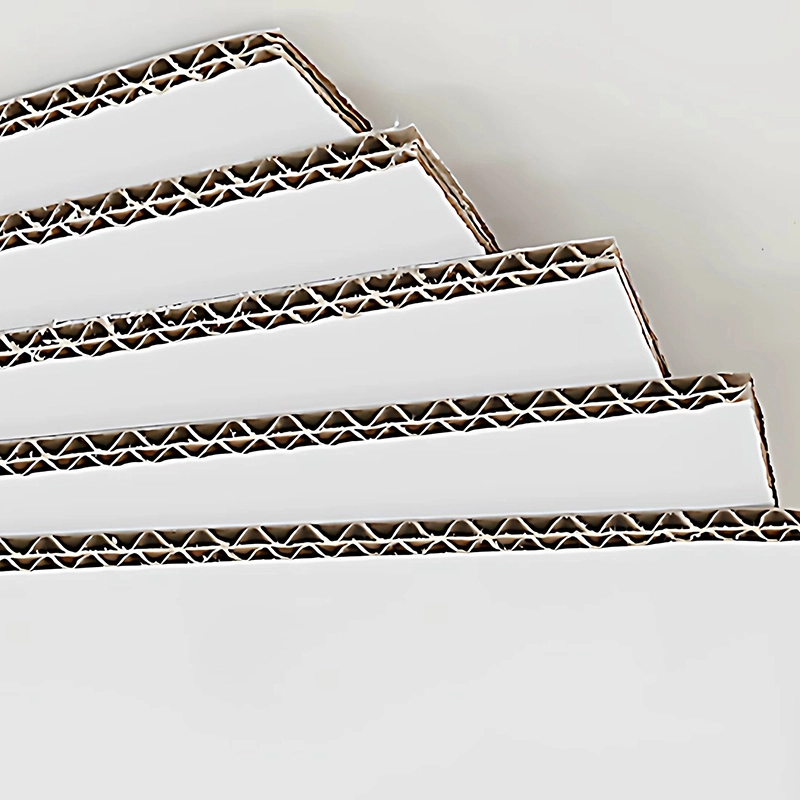

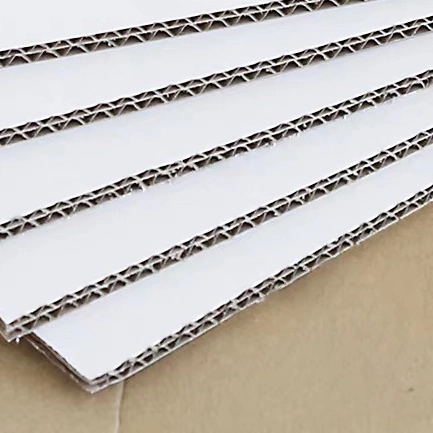

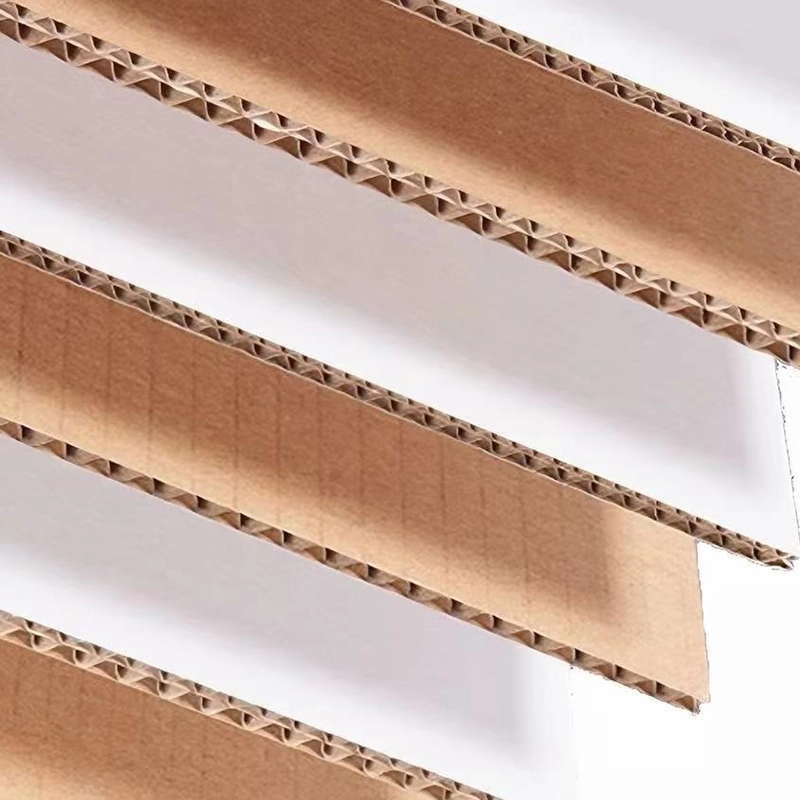

Water-Resistant BB-Flute Double Wall Corrugated Board

Water resistant BE flute double wall corrugated board is a functional board product created by applying water-resistant treatments—such as surface sizing, coating, or film lamination—to high-compression-strength BE double-wall corrugated board. While retaining the core advantages of the BE structure—combining the high-quality printability of the outer E-flute with the superior load-bearing capacity of the inner B-flute—the product features a surface with excellent hydrophobic or water-resistant properties, effectively protecting against moisture and liquid contact during transport, storage, and use.

Untreated corrugated board is naturally hydrophilic; its cellulose molecular chains contain numerous hydroxyl groups (-OH) that readily form hydrogen bonds with water molecules, causing the board to absorb water, swell, and soften. Water-Resistant BE-Flute Double Wall Corrugated Board overcomes this inherent weakness—whereby standard board softens upon contact with water—by creating a hydrophobic surface barrier through specialized processing.

With an overall thickness of 3.5–5.0 mm, it is suitable for packaging light-to-medium-weight goods (18–30 kg) and is particularly ideal for high-humidity or wet environments, such as cold-chain logistics, fresh produce and seafood distribution, and maritime exports.

Key Physical Parameters

The water resistant BE flute double wall corrugated board is manufactured in strict accordance with the national standard GB/T 6544-2008 (*Corrugated Board*) and the group standard T/QGCML 4957-2025 (*Technical Requirements for Water-Resistant, Compression-Resistant, and Eco-Friendly Corrugated Packaging Boxes*). While retaining the inherent mechanical properties of BE-flute double-wall corrugated board, specific water-resistance indicators have been incorporated; the core parameters are as follows:

Indicator Explanation: The Cobb value is a key metric for measuring the water absorption capacity of the paperboard surface; a lower value indicates superior water resistance. Untreated corrugated board typically has a Cobb value exceeding 150 g/m² (resulting in complete saturation within 30 minutes), whereas water-resistant treatment can reduce this value to below 40 g/m². Edge Crush Strength (ECS) drops sharply upon water absorption—for instance, the ECS of five-layer corrugated board can decrease by over 70% when relative humidity rises from 50% to 98%—so the primary objective of water-resistant treatment is to maintain stable mechanical properties in high-humidity environments.

Waterproofing Process Options

We offer three waterproofing process options, allowing customers to make flexible choices based on usage scenarios, required protection levels, and budget constraints:

Option 1: Surface Sizing (Basic Moisture Resistance)

Heavy surface sizing is applied to the linerboard during the papermaking process. Water-resistant additives are incorporated into the starch paste to enhance the hydrophobicity of the paper fibers, thereby reducing water absorption and capillary action. This is a cost-effective solution with a Cobb value of 80–120 g/m², suitable for short-term moisture protection and standard warehousing environments.

Option 2: Water-based Coating (Moderate Water Resistance)

A water-based acrylic resin or polyurethane coating is applied to the board surface, creating a continuous hydrophobic film. The coating thickness ranges from 5 to 15 μm; it is environmentally friendly (low VOC emissions) and can reduce the Cobb value to below 40 g/m². This option is ideal for applications requiring moderate water resistance alongside printability, as the transparent coating does not compromise print quality.

Option 3: Extrusion Coating/Lamination (High Water Resistance)

A polyethylene (PE) or biodegradable polylactic acid (PLA) film is extrusion-coated onto the board surface, forming a robust, continuous physical water barrier. Single-sided extrusion coating can achieve a Cobb value close to zero, making it widely suitable for high-humidity or wet environments such as cold chain logistics, frozen foods, and seafood handling. Biodegradable extrusion coating (PLA) combines water resistance with environmental sustainability, representing a key trend for both the present and the future.

Structural Advantages and Performance Comparison

The Unique Value of the BE Structure in Water-Resistant Applications

For Water-Resistant BE-Flute Double Wall Corrugated Board, the choice of flute profile directly impacts moisture resistance. High-basis-weight, fine-flute structures (such as B-flute and E-flute) offer superior resistance to moisture penetration and pressure-induced deformation compared to low-basis-weight, coarse-flute structures (such as A-flute and C-flute). In the BE structure, the outer E-flute features a low profile (1.2 mm height, ~2.5 mm pitch) with dense bonding points to the linerboard, resulting in a flat surface; this ensures more uniform coating coverage and stronger adhesion during coating or lamination processes, minimizing issues like missed spots or coating delamination. The inner B-flute (approx. 2.5 mm height) provides rigid structural support, maintaining the box's load-bearing integrity even if the coated surface is exposed to moisture.

Comparison with BC Water-Resistant Double-Wall Corrugated Board

Application Scenarios

Cold Chain and Fresh Food Distribution: Suitable for packaging in the cold chain transport of seafood, frozen foods, and fresh produce. A laminated coating creates a physical water barrier, effectively resisting saturation from melting ice and the high-humidity conditions of cold storage. The board maintains a high retention rate of edge crush strength even in environments with 90% relative humidity.

Export Shipping Packaging: Suitable for cross-border containerized sea freight. Temperature fluctuations inside containers during transit often cause condensation ("container rain"); conventional corrugated boxes can lose over 70% of their edge crush strength when exposed to moisture. Waterproofing significantly slows this strength degradation, ensuring goods arrive safely.

Food and Beverage Packaging: Suitable for outer packaging of multi-pack beverages, dairy products, sauces, and other items posing a risk of liquid leakage. Surface waterproofing prevents box collapse caused by localized moisture exposure.

High-Humidity Storage Environments: Suitable for warehousing in regions with high humidity, such as coastal areas or during the "Plum Rain" season in southern regions. With waterproofing treatment, the board's strength retention rate in high-humidity environments improves from the standard 65%–70% to over 85%.

Production Process Assurance

Leveraging an automated five-layer corrugated board production line and supporting waterproofing equipment, we implement comprehensive process control—spanning raw paper selection and corrugated lamination to post-production waterproofing treatments.

Raw Material Selection: We utilize high-stiffness kraft linerboard and high-strength corrugated medium, bonded with eco-friendly starch-based adhesive. Linerboard basis weight can be adjusted between 140–250 g/m² based on load-bearing requirements, while the medium ranges from 100–170 g/m².

Corrugated Lamination & Pressing: Dual layers of corrugated medium undergo simultaneous high-temperature pressing. We precisely control board thickness and layer tension to ensure optimal flatness for the E-flute and structural support for the B-flute.

Waterproofing & Post-Processing: Depending on the client's chosen waterproofing solution, we apply surface sizing, water-based coatings, or extrusion lamination (film coating). Key parameters—such as coating weight, oven temperature, and line speed—are precisely controlled to ensure coating uniformity and proper curing. In the extrusion lamination process, PE or PLA materials are melted via extruder and evenly applied to the board surface, bonding into a single integrated unit upon cooling.

Post-Forming: Compatible with high-speed printing, slotting, and die-cutting processes. Note that waterproofing or lamination treatments may slightly alter board flexibility; therefore, crease depth and pressure should be adjusted during die-cutting to prevent cracking at the fold lines.

Procurement & Service

Zhongyi Intelligent Packaging Co., Ltd. is a professional manufacturer and supplier with over 20 years of experience in the corrugated packaging industry. We operate an intelligent production base covering approximately 2.8 hectares (42 mu) in Changli County, Qinhuangdao City, Hebei Province, with a total investment of 200 million RMB and a workforce exceeding 100 employees. Recognized as a Hebei Province "Specialized, Refined, Unique, and Innovative" (SRUI) enterprise, we are equipped with an automated five-layer corrugated production line, high-speed offset presses, intelligent processing centers, and supporting waterproofing/lamination equipment. We independently execute every stage of production—from raw paper forming and corrugation to waterproofing, precision printing, die-cutting, and final processing—ensuring comprehensive control over product quality, production schedules, and customization precision. Service Coverage: Operations reliably cover the Beijing-Tianjin-Hebei region, Inner Mongolia, and Northeast China. Rapid, short-distance delivery is available within the Beijing-Tianjin-Hebei and Northeast regions, while nationwide orders are dispatched and delivered within three business days.

Production and Supply Capacity: We maintain ready stock of standard-specification water resistant BE flute double wall corrugated board, enabling us to quickly fulfill orders of any size. Custom specifications (non-standard widths, basis weights, thicknesses, water-resistance grades, or printing processes) are produced to order; the initial batch is delivered 7–10 business days after sample approval, with flexible production scheduling.

Quality Control System: We have established a standardized quality control system covering every batch and hold certifications such as ISO quality system accreditation and printing operation licenses. Before shipment, samples from each batch undergo testing for key metrics including edge crush strength, bursting strength, thickness deviation, moisture content, bonding strength, and Cobb water absorption values. Upon request, we can also conduct performance verification under real-world conditions, such as high-humidity environments, water spray tests, and long-distance transport vibration simulations.

Direct Factory Supply: As the original manufacturer, we handle all production processes in-house, eliminating intermediaries to offer a direct-from-factory supply model to our clients.

Comprehensive Service Support: Backed by over 20 years of industry experience, we provide end-to-end services ranging from pre-sales product selection consultation and in-process production monitoring to post-sales quality assurance. We offer free samples for testing, on-demand customization of waterproofing levels and material specifications, and precisely tailored packaging solutions suited to specific application scenarios.

Environmental Compliance: All corrugated board is produced using high-purity virgin wood pulp, combined with eco-friendly, odorless adhesives and water-based inks. Waterproof coatings utilize eco-friendly water-based materials, and our lamination process offers the option of using biodegradable PLA instead of traditional PE, balancing waterproofing performance with environmental requirements. Our products are 100% recyclable and biodegradable, complying with environmental regulations in domestic markets as well as major overseas markets such as the EU and North America.

FAQ

Q1: What does a Cobb value of ≤40g/m² mean for Water-Resistant BE-Flute Double Wall Corrugated Board?

A1: The Cobb value (water absorption rate) is an internationally recognized metric for measuring the surface water absorption capacity of paperboard; a lower value indicates superior water resistance. Untreated corrugated board typically has a Cobb value exceeding 150g/m² (resulting in complete saturation within 30 minutes), meaning the surface absorbs water very easily. Surface sizing can reduce the Cobb value to 80–120g/m² (moisture-resistant grade), while water-based coatings or lamination can lower it to below 40g/m² (waterproof grade). A Cobb value of ≤40g/m² indicates that the board surface absorbs only a minimal amount of moisture under standard test conditions, effectively withstanding brief exposure to rain, condensation, or accidental liquid contact.

Q2: How much edge crush strength (ECT) does water resistant BE flute double wall corrugated board retain in high-humidity environments?

A2: Conventional untreated corrugated board can lose 30%–40% of its edge crush strength after 24 hours in an environment with 90% relative humidity; under extreme conditions of 98% relative humidity, the strength of five-layer corrugated board can drop by more than 70%. Waterproofing creates a hydrophobic or water-impermeable surface layer that significantly slows moisture penetration into the fibers, allowing the board to retain over 85% of its edge crush strength (exact figures depend on the waterproofing process and material composition). For high-humidity scenarios such as cold chain logistics or ocean shipping, lamination is recommended for the most reliable protection.

Q3: Can water resistant BE flute double wall corrugated board still be printed in color?

A3: Yes, though the approach depends on the waterproofing process. Surface sizing does not affect print quality, allowing for direct flexographic printing. Water-based coatings are transparent and thin (5–15μm), having minimal impact on print quality and supporting fine printing at 150–175 lines per inch (LPI). Since extrusion coating involves applying a plastic film to the paperboard surface, printing must be completed prior to coating (print-then-coat), or specialized inks must be used for post-coating printing. We recommend clarifying your printing requirements during the selection process so we can suggest the most suitable waterproofing method and production sequence.

Q4: Can water resistant BE flute double wall corrugated board be used for packaging frozen foods in cold chain transport?

A4: Yes, it is perfectly suitable. Cartons in cold chain transport face two main challenges: condensation caused by the temperature difference between cold storage and the external environment, and meltwater generated as frozen food thaws. For cold chain applications, we recommend an extrusion coating solution (single- or double-sided PE/PLA coating); the coating creates a physical water barrier—achieving a Cobb value near zero—that prevents meltwater from penetrating the board. Meanwhile, the inner B-flute layer of the BE structure provides stable stacking support, maintaining box rigidity even in the high-humidity environment of cold storage. We can recommend the appropriate material composition and waterproofing grade based on specific cold chain temperatures (e.g., -18°C or 0–4°C) and transport duration.

Q5: How does the cost of water resistant BE flute double wall corrugated board compare to standard BE-flute board?

A5: Waterproofing treatments incur additional processing and material costs. Surface sizing adds the least cost (approximately 5–10% above base paper costs); water-based coating adds about 10–20%; and extrusion coating adds approximately 20–40% (single-sided) to 40–60% (double-sided). However, in high-humidity or wet environments, the hidden costs associated with standard board—such as box collapse, cargo damage, and compensation claims—often far exceed the incremental cost of waterproofing. We recommend evaluating the overall cost-benefit based on the actual usage environment; for cold chain, maritime shipping, and fresh produce applications, waterproofing is a necessary investment rather than an optional extra.

Q6: Does your water resistant BE flute double wall corrugated board meet food contact safety requirements?

A6: Yes, it does. Our factory’s water resistant BE flute double wall corrugated board utilizes food-grade base paper and eco-friendly materials: ① High-purity virgin wood pulp is used for the liner and medium papers, ensuring they are free from harmful substances; ② Food-contact grade acrylic resin is used for the water-based coating; ③ Coating options include food-grade PE or biodegradable PLA, all compliant with the GB 4806 series of national food safety standards, as well as EU Regulation EC 1935/2004 and relevant US FDA regulations. If the board is intended for direct food contact packaging (e.g., inner boxes for fruit or pastries), please specify this when selecting your product; we will then use the appropriate food-grade material configuration and provide the relevant test reports.

Q7: What is the lead time for water resistant BE flute double wall corrugated board?

A7: Standard specifications with conventional water-resistance treatments (surface sizing and water-based coating) are kept in stock; orders placed nationwide are shipped within 3 business days, with next-day delivery available for the Beijing-Tianjin-Hebei and Northeast regions. Orders requiring lamination/coating treatments require a dedicated production schedule; the first batch is delivered 7–10 business days after sample confirmation. Custom specifications (non-standard width, basis weight, thickness, or water-resistance level) are produced to order; we offer flexible minimum order quantities for small-batch samples and can prioritize sample production.

Q8: Can you provide test reports on the water-resistance performance of the BE double-wall corrugated board?

A8: Yes. We can provide the following test reports based on customer requirements: ① Cobb value test report (conducted according to the GB/T 1540 Cobb method) to measure surface water absorption; ② Adhesive water-resistance test report (conducted according to the GB/T 22873-2008 immersion method) to measure the water resistance of the corrugated board adhesive; ③ Edge Crush Test (ECT) retention rate report for high-humidity environments, simulating the reduction in edge crush strength after exposure to 85%–90% relative humidity for 24–72 hours. These tests can be performed on a per-batch basis prior to shipment and the reports provided with the goods.

Q9: Can the Water-Resistant BE-Flute Double Wall Corrugated Board be fully submerged in water?

In what humid environments is it suitable for use? water resistant BE flute double wall corrugated board is a moisture-resistant and water-repellent packaging material; it is not a fully waterproof, submersible-grade material and is not recommended for prolonged immersion in water. Its primary function is to withstand atmospheric moisture, condensation in cold chain environments, and brief exposure to rain or splashes. Suitable applications include cold chain logistics, fresh food packaging, ocean container shipping, warehousing during humid rainy seasons (such as the "Plum Rains" in southern China), and temporary outdoor storage. In these scenarios, the material effectively prevents softening due to water absorption and loss of structural strength, thereby maintaining the integrity of the packaging. For specialized waterproofing requirements, higher-grade options featuring fully waterproof lamination can also be customized.
