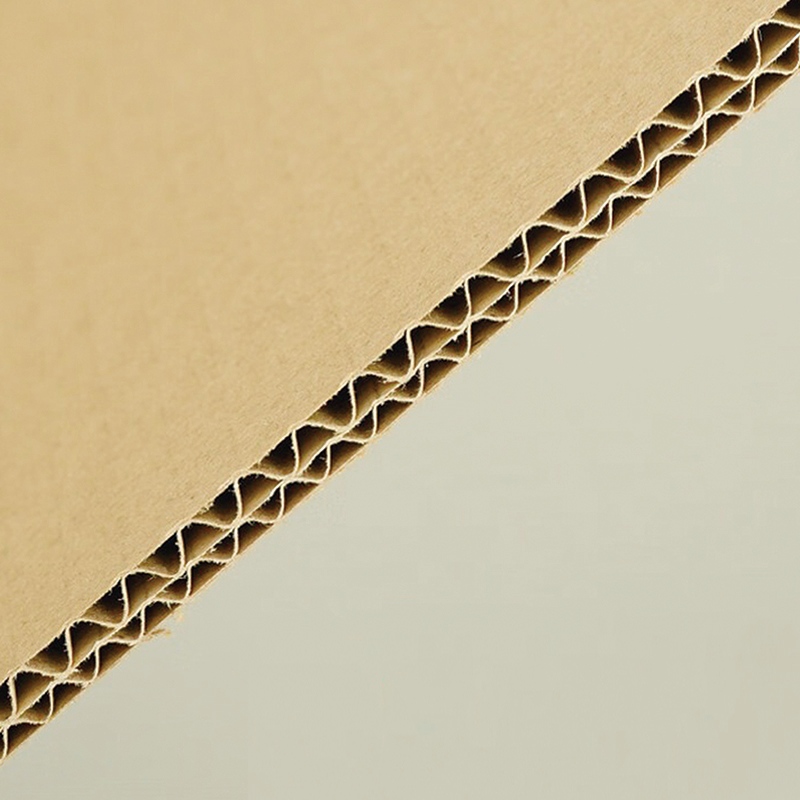

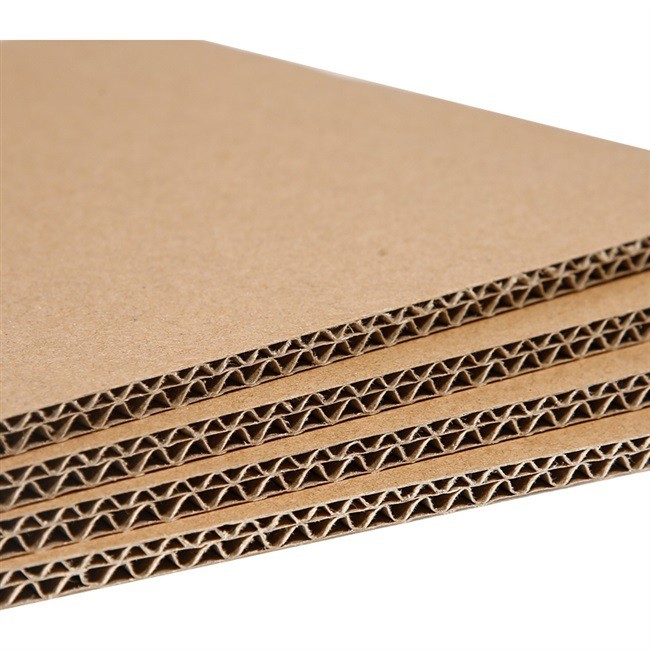

BC-Flute Double-Wall Corrugated Board

BC-Flute Double-Wall Corrugated Board is classified as a heavy-duty packaging material featuring a dual-layer composite structure. It is distinctly positioned apart from traditional single-flute products (such as single-wall B-flute or C-flute boards), thereby overcoming the inherent limitations associated with materials optimized solely for printing or solely for cushioning.

This product integrates the excellent printability of B-flute with the outstanding compressive strength and cushioning capabilities of C-flute through a high-temperature lamination process. It has been specifically developed for heavy-duty industrial outer packaging applications involving long-distance maritime shipping and multi-tier, high-stack warehousing.

Dual-Layer Lamination Process

1. BC-Flute Double-Wall Corrugated Board is produced by laminating a single layer of B-flute with a single layer of C-flute under pressure. The entire bonding process is standardized, ensuring that the two corrugated layers are tightly interlocked and bonded together. Consequently, the finished product is free from common manufacturing defects---such as delamination, internal voids, or localized looseness---resulting in a fully integrated structural integrity.

2. The total thickness of the finished product is precisely controlled within a range of 6.4 mm to 6.8 mm, ensuring uniform and consistent dimensions. Leveraging this complementary dual-layer structure, the board retains the surface flatness and smooth ink absorption characteristics of B-flute, while simultaneously inheriting the superior impact resistance and shock-absorbing cushioning properties of C-flute.

3. The lamination process has undergone extensive calibration during mass production runs to ensure a uniform distribution of internal stress within the board material. As a result, during subsequent processing---such as folding or slotting to form cartons---the material is highly resistant to edge cracking or tearing, making it ideally suited for the automated, high-volume production of heavy-duty cardboard boxes.

High-Strength Base Paper Configuration

1. Across our entire product range, we utilize reinforced virgin pulp as the primary raw material. Both the face paper and the core paper undergo specialized fiber-strengthening treatments, resulting in a dense and exceptionally tough base material that significantly elevates the overall Ring Crush Test (RCT) and Edge Crush Test (ECT) performance metrics.

2. Under standard operating conditions, fully loaded cartons made from this material can be stably stacked up to eight layers or more. Even during prolonged periods of warehouse storage, the cartons remain resistant to sagging, structural collapse, or deformation, thereby substantially reducing the risk of damage and loss associated with the storage of heavy or bulky goods.

3. Outstanding Resistance to Crushing and Impact: External forces---whether resulting from bumps and scrapes during land transport handling or the turbulence and compression inherent in long-distance ocean shipping---are progressively dissipated layer by layer by the double-wall corrugated structure, effectively ensuring the integrity of the heavy-duty products contained within the box.

Cost vs. Performance Comparison

1. Material Efficiency: Compared to standard single-wall corrugated board, this material features approximately 50% greater board thickness and raw material usage. While the initial procurement cost sees a slight increase, the overall compressive strength and cushioning performance are enhanced by a factor of 2 to 3, resulting in a exponential increase in protective efficiency.

2. Structural Simplification: Packaging solutions that previously required thicker single-wall boards or the addition of protective corner guards can now be streamlined by switching to BC-Flute Double-Wall Corrugated Board. This eliminates the need to purchase auxiliary materials and saves on the labor costs associated with their installation, ultimately leading to a reduction in overall packaging expenses.

3. Reduced Damage Rates: A lower rate of product damage translates directly into fewer post-sales claims, returns, and exchanges. For manufacturing facilities that regularly export heavy industrial products, this offers significant long-term economic advantages.

Optional Moisture-Resistant Modification Process

1. Tailored for Maritime Export: Specifically designed for the high-humidity conditions encountered during international maritime shipping, an optional specialized moisture-proofing treatment can be applied. This involves optimizing the adhesive formula during the bonding stage to create a protective moisture-resistant barrier within the structure of the board itself.

2. Enhanced Durability: Boards treated with this moisture-resistant modification are far less susceptible to water absorption, softening, or delamination and cracking at the seams---even when exposed to the high temperatures, high humidity, and significant day-night temperature fluctuations typical of maritime environments. This effectively prevents cargo damage caused by the structural failure of the shipping container.

3. Flexible Customization: For standard domestic land transport orders, the regular manufacturing process can be selected; the moisture-resistant option can be chosen on an as-needed basis. This approach avoids unnecessary cost wastage and allows for flexible adaptation to the distinct requirements of both domestic and international export orders.

Which Heavy-Duty Products Benefit Most from BC-Flute Double-Wall Corrugated Board?

1. Packaging for Large Machinery and Equipment: Ideal for shipping and storage containers used for various machine tool components and heavy industrial parts. It effectively withstands the heavy loads encountered during handling and the vibrations of long-distance transit, safeguarding precision mechanical components from external physical damage.

2. Packaging for Motorcycles and Vehicle Components: Suitable for boxing large vehicle sub-assemblies---such as complete knock-down (CKD) kits, frames, and engines. The material maintains its structural integrity without deformation even when stacked in multiple layers, making it perfectly suited for the high-volume warehousing and logistics operations of automotive manufacturers.

3. Packaging for PV Panel Storage and Transport: Given that photovoltaic panels are high-value goods prone to impact damage, our packaging features a double-layer cushioning structure designed to prevent corner damage caused by collisions, making it ideal for the bulk export of PV products.

4. Outer Packaging for Panel Furniture and Chemical Drums: We provide protective outer casings for various types of ready-to-assemble furniture and chemical/paint drums. These casings are designed to be compression-resistant and crack-proof, effectively preventing leaks and physical damage to the drums during storage and transit.

Customization and Value-Added Processing Services

1. Adjustable Material Specifications: Based on the weight of the goods and the required stacking height, we can flexibly adjust the basis weight (grammage) of the core paper, linerboard, and the adhesive application rate to precisely tailor the board's rigidity and maximum load-bearing capacity to your specific needs.

2. Integrated Box Forming and Processing: We handle all downstream processing steps---including slotting, die-cutting, and large-format printing of text/graphics on the box exterior---providing a one-stop solution that transforms raw cardboard into semi-finished box units entirely within our facility.

3. Scalable Production Support: We are equipped to handle everything from small-batch prototyping to large-scale mass production. Leveraging our mature production scheduling system, we guarantee the punctual delivery of export orders, making our services ideal for heavy industry enterprises requiring both new product prototyping and routine inventory replenishment.

FAQ

Q1: How do I choose between BC-Flute Double-Wall Corrugated Board and standard Single-Wall Corrugated Board?

A: Standard single-wall corrugated board is suitable for the short-distance transport of small-to-medium-sized goods and low-level stacking. BC-Flute Corrugated Board, conversely, is designed for heavy, bulky items, high-level stacking (up to 8 layers), and long-distance ocean freight scenarios; it is the preferred choice for export packaging that requires superior compression strength and moisture resistance.

Q2: Will the moisture-resistant treatment affect the print quality of the board?

A: The specialized moisture-resistant adhesive is applied exclusively to the corrugated fluting layer (the bonding interface); the surface area designated for printing remains unaltered. Consequently, the board retains the inherent advantages of the "B-flute" structure---namely, a smooth surface that is highly conducive to printing---ensuring that box markings and export warning labels can be printed clearly and without issue.

Q3: Are there high minimum order quantity (MOQ) thresholds for custom basis weights or specialized processing?

A: Standard stock specifications are available for purchase in small quantities. For orders requiring custom basis weights or specialized processing, we can first produce samples for your review and approval; mass production will commence only after you have verified and confirmed that the samples meet your exact requirements.
