High-Compression BC-Flute Double Wall Corrugated Board

Our High-Compression BC-Flute Double Wall Corrugated Board serves as a heavy-duty packaging substrate. Unlike single-wall, micro-flute, or standard double-wall products, it is specifically engineered to address common procurement challenges: structural collapse during multi-layer stacking of heavy goods, box punctures caused by sharp-edged items, softening due to moisture during ocean transport, and non-compliance with export packaging standards.

By integrating B-flute and C-flute types, the board delivers a balance of print quality, vertical cushioning, and flat-surface load-bearing capacity. Manufactured using high-basis-weight virgin paper and a standardized constant-temperature lamination process, every batch undergoes simulated stacking compression testing. The boards can be directly converted into outer shipping cartons, internal dividers, and load-bearing transport pads.

Product Structure Definition

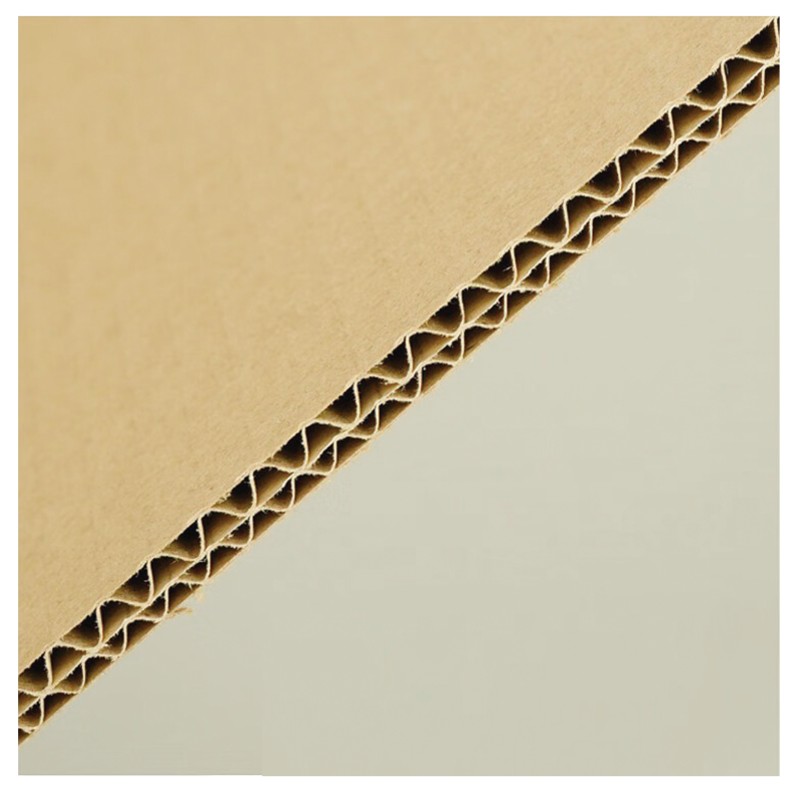

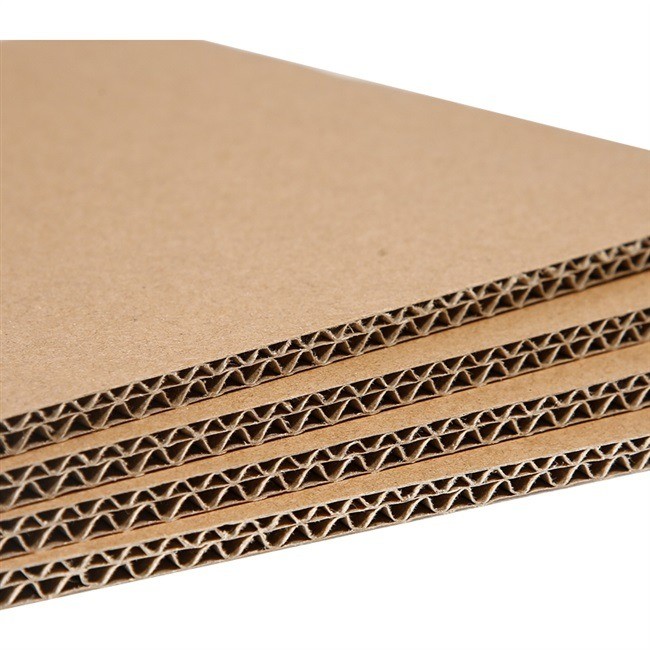

1. Structural Composition: A standard five-layer BC double-wall structure consisting of an outer liner, B-flute medium, intermediate liner, C-flute medium, and inner liner. These layers are bonded and pressed together using a constant-temperature adhesive process, ensuring tight adhesion without delamination or air pockets.

2. Flute Performance Roles: The B-flute features a fine, low-profile structure that offers high flat-crush resistance and a smooth surface, making it ideal for printing. The C-flute features a taller profile that provides superior cushioning, shock absorption, and impact resistance, effectively counteracting external forces and vibrations during long-distance transport.

3. Typical Use Cases: This high-compression BC-flute board is widely used for heavy-duty outer shipping cartons, internal layer dividers, load-bearing base pads, and logistics totes. It provides long-lasting resistance to heavy stacking loads and minimizes damage caused by collisions or crushing during handling and transit.

Key Performance Highlights

1. Integrated Load-Bearing & Cushioning: Dual-layer corrugated structure distributes stress effectively, preventing box collapse during multi-layer stacking; offers excellent puncture resistance, ensuring angular items like hardware and piping do not pierce the box.

2. Consistent Bonding & Cutting Quality: Fully automated, constant-temperature, thin-film adhesive application ensures secure bonding without delamination or glue overflow; clean, burr-free cuts facilitate smooth downstream processes like gluing and stitching.

3. Comprehensive Environmental Adaptability: Customizable options include wax impregnation (moisture resistance), lamination (waterproofing), anti-static coatings, and fluorescent-free food-grade treatments; suitable for humid storage, cold storage, electronics, and food industry applications.

4. Printing & Cost Advantages: Flat surface ensures clear, opaque printing for both monochrome and color designs; recyclable material offers lower procurement and transport costs compared to solid wood pallets.

Standardized Technical Specifications

1. Thickness & Structure: 5-ply BC double-wall corrugated structure; B-flute height approx. 2.4mm, C-flute height approx. 3.6mm; total finished thickness range: 6--7mm.

2. Common Liner/Medium Combinations: Two standard configurations available---120g liner with 100g medium, or 140g heavy-duty liner with 120g high-strength medium; paper weights can be upgraded upon request.

3. Mechanical Strength Standards: Bursting strength starts at 1200 kPa for standard models (up to 1600 kPa for heavy-duty/reinforced versions); Edge Crush Test (ECT) strength ≥7500 N/m for standard models (≥9000 N/m for heavy-duty versions).

4. Dimensions & Specialized Treatments: Base roll widths of 1.2m, 1.4m, and 1.6m; custom length and width slitting available; four surface treatment options: waterproof, moisture-proof, anti-static, and fluorescent-free (food-grade).

Suitable Industries and Application Scenarios

1. Suitable Industries: Hardware and machinery parts, construction materials and piping, home appliances, furniture components, bulk food packaging, chemical additives, e-commerce logistics for large items, and industrial equipment liners/dunnage.

2. Real-world Applications: Outer packaging for stacking heavy factory equipment; protective dividers for hardware crates; ocean-freight container loading; outer packaging for large retail displays; multi-layer stacking and transport packaging for express logistics hubs.

End-to-End Quality Control System

1. Multi-stage Inspection Process: Physicochemical testing of incoming base paper → real-time monitoring of the corrugation/lamination process → mechanical testing (compression and burst strength) on finished product samples → full inspection of dimensions and appearance → isolation and rework of defective units. Complete inspection records are maintained for every batch, ensuring full traceability of raw materials and production timing.

2. Differentiated Quality Advantages: Pre-shipment testing simulates multi-layer stacking and high-humidity storage/transport conditions. In contrast, typical market competitors often only verify dimensions without heavy-load simulation, leading to deformation or collapse during long-term stacking.

Key Differences vs. Standard BC-Flute Corrugated Boards from Competitors

1. Raw Material Differences: We use a high proportion of virgin wood pulp for the linerboard with minimal recycled content, ensuring structural integrity under long-term loads; low-cost competitors use high levels of mixed waste paper, causing collapse or deformation after stacking just 2--3 layers.

2. Lamination Process Differences: Fully automated, uniform, thin-layer adhesive application prevents glue overflow or delamination risks; small workshops often use manual gluing, resulting in uneven bonding and a tendency to delaminate or crack during transport.

3. Testing Standard Differences: Every batch of High-Compression BC-Flute Double Wall Corrugated Board undergoes simulated stacking compression tests, ensuring stability for high-stacking (5+ layers); most manufacturers only check appearance and dimensions without verifying load-bearing performance.

4. Customization Service Differences: One-stop support for moisture-proof, anti-static, and food-grade coatings, with rapid scheduling for small-batch slitting; standard manufacturers typically supply only conventional boards and cannot accommodate specialized processing requirements. 5. Direct Supply Advantages: We operate our own fully integrated, intelligent five-layer corrugated board production line, handling every step in-house without intermediary markups. We maintain ample stock of various raw paper grades to ensure controllable delivery times and can provide complete inspection documentation for export orders.

Comprehensive After-Sales Technical Support

1. Technical Documentation: Free illustrated operating instructions covering board cutting, carton gluing and stitching, and specifications for laying support pads when packing heavy items.

2. Visual Training Materials: Short video tutorials on equipment slitting, moisture-proof board storage, and reinforcement/strapping methods for heavy-duty cartons---ready for direct use by workshop operators.

3. Dedicated Technical Liaison: One-on-one support connecting you with packaging specialists to optimize carton structures for large, heavy, or export goods, minimizing transport damage risks at the design stage.

Standardized Packaging and Shipping Solutions

1. Large Sheet Packaging: Fully wrapped in stretch film with solid wood pallet support at the base; compatible with forklift handling to prevent bending or deformation.

2. Slit Sheet Packaging: Fully wrapped in kraft paper with paper edge protectors to prevent edge crushing or impact damage during transit.

3. Multi-Channel Shipping: Direct full-truckload delivery within the Beijing-Tianjin-Hebei region; LTL (Less-Than-Truckload) logistics for other provinces; containerized sea freight for export orders, with wooden pallet packaging designed for port handling operations.

4. Standard Delivery Times: 24--48 hour dispatch for standard stock specifications; 3--5 business day lead time for custom orders requiring moisture-proof, anti-static, or food-grade processing.

Factory Capabilities and Proven Customer Reputation

1. Export Project Experience: Long-term, stable supply of industrial equipment packaging boards to Southeast Asia and the Middle East, supporting overseas infrastructure and heavy machinery export projects.

2. Established Client Base: Long-term service provider for machinery manufacturers, building material companies, and home appliance producers; we can provide brand partnership materials, real-time workshop footage, raw material storage photos, and on-site quality control inspection footage.

3. Authentic Customer Feedback

① Long-term procurement for equipment exports; containers stacked for a full month during sea freight showed no carton collapse or puncture issues.

② Sharp edges on hardware components can easily puncture standard cartons; this double-wall board offers stable puncture resistance, significantly reducing damage during transport and associated after-sales issues.

③ Supports precise, on-demand size slitting, eliminating the need for secondary cutting in the workshop and effectively saving on labor costs.

Comprehensive Customization Services

1. Customizable features: Adjustment of base paper grammage and board thickness; options for waterproof, anti-static, or fluorescent-free food-grade coatings; custom length/width slitting; pre-printed box graphics; prefabricated internal liners/dividers; and graded load-bearing capacity upgrades.

2. Complete standardized production process: Incoming base paper inspection → High-temperature corrugation forming → Uniform double-sided adhesive lamination → Constant-temperature drying and setting → Cooling and flattening → Precision slitting → Mechanical sampling tests → Palletizing and warehousing.

Long-Term Value and Benefits

1. Advantages for large industrial packaging: Used by numerous machinery plants for ocean exports of machine tool parts---stacked boxes remain stable without collapsing, and edges/corners remain intact; building material suppliers use moisture-resistant versions for short-term outdoor storage, preventing boards from softening due to dampness.

2. Damage reduction for large e-commerce items: Furniture e-commerce retailers report a significant drop in transit damage rates, lowering costs associated with after-sales compensation and returns/exchanges.

3. Environmental and cost advantages: High-compression BC-flute double-wall corrugated board is lightweight, reducing overall packaging and logistics expenses compared to solid wood pallets; waste boards are fully recyclable, complying with international green packaging regulations.

Sample, Warranty, and Return/Exchange Policies

1. Sample service: Small test samples are provided free of charge (customer covers shipping); for bulk orders, full-sized sample boards can be sent along with the corresponding batch inspection report.

2. Warranty and storage life: Under standard dry and ventilated storage conditions, the board maintains stable mechanical properties for 6 months; boards treated with moisture-proof wax impregnation or film lamination have an extended storage life of up to 10 months. 3. Criteria for Returns and Exchanges: In the event of manufacturing defects upon delivery---such as dimensional deviations or board delamination---customers must provide photographic evidence within 48 hours; the factory will then arrange a free replacement or negotiate a return/exchange. Damage caused by customer-performed cutting or improper storage (e.g., damp environments) is not covered under the warranty for returns or exchanges.

FAQ

Q1: What are the differences between BC, AB, and BE double-wall corrugated board types?

A: BC-flute offers a balance of compression strength, cushioning, and printability; it is the most versatile option, suitable for the vast majority of heavy-duty domestic and export goods. AB-flute provides superior cushioning, making it ideal for heavy, fragile equipment. BE-flute features the smoothest surface and best print quality, making it the preferred choice for high-end, color-printed heavy-duty gift packaging.

Q2: How many layers of goods can be stacked using high-compression BC double-wall cartons?

A: Standard boards can be stably stacked 5--8 layers high when fully loaded; custom heavy-duty or thickened versions allow for even higher stacking, subject to adjustments based on warehouse floor flatness and the uniformity of the load's weight.

Q3: Is a custom moisture-proof version required for long-term storage in a damp warehouse?

A: We recommend custom moisture-proof options, such as wax-impregnated or film-laminated boards; standard boards will absorb moisture and soften during prolonged exposure to high humidity, leading to a significant reduction in compression and puncture resistance.

Q4: Can this BC double-wall board be used for direct food contact as inner packaging?

A: Standard versions are not suitable for direct food contact; however, for food packaging needs, we offer custom non-fluorescent, food-grade BC double-wall board, accompanied by full certification for food-contact safety.

Q5: Does the surface of the High-Compression BC-Flute Double Wall Corrugated Board support color printing?

A: Yes, it supports both single-color and four-color printing. The board surface is smooth and opaque, allowing for clear printing of graphics, export warning symbols, and brand logos.
